Aluminum Shell Elevator

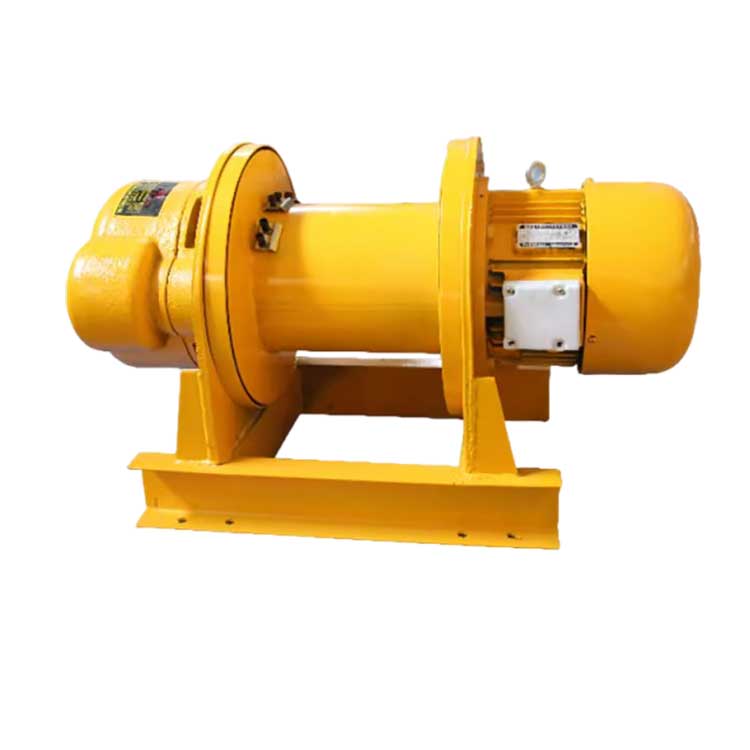

The new CD1 winch is brand new, compact, and durable. It is easy to operate, highly heat-resistant, has a long load-bearing time, features precision-machined gears made of 45 steel, excellent sealing, a stable base, and a large rope capacity. It is used for winching, unloading, and pushing/dragging goods. It has a wide range of applications in industries such as construction, bridge building, and metallurgy.
Send InquiryDetailed Description
1.Product Advantages
●The ICD1 new type winch is more integrated and simplified compared to traditional winches.●It features a motor from Nanjing Special Motors, with high heat resistance and long load duration.
●The reducer is made with internal gears precisely machined from 45 steel, ensuring strong sealing.
●The base is made of thick channel steel with a welded structure to prevent loosening.
●The drum is an extended type with a large rope winding capacity, making it convenient to use.
2.Functions and uses
It is mainly used for hoisting, pulling and lifting, pushing and dragging heavy objects. It is applicable in construction, bridges, metallurgy, mining and other enterprise sites. It is used for material lifting and large-scale lifting projects to perform hoisting and dragging various materials and equipment.3.Specification
|
Model |
CD1-1 |
CD1-2 |
CD1-3 |
CD1-5 |
|
Lifting Speed (m/min) |
20 | 16 | 16 | 16 |
|
Lifting Height (m) |
30-120 |
30-120 |
30-120 |
30-120 |
|
Motor Power (kw) |
1.5 | 3 | 4.5 | 7.5 |
|
Rated Lifting Capacity (kg) |
500-1000 |
1000-2000 |
1500-3000 |
2500-5000 |
|
Rated Voltage (v) |
380 |
380 |
380 |
380 |
