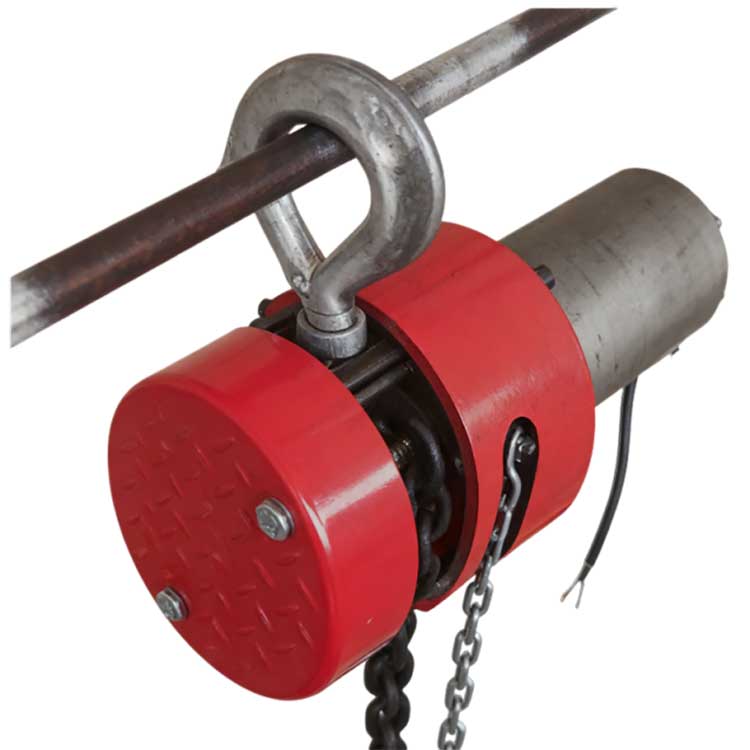

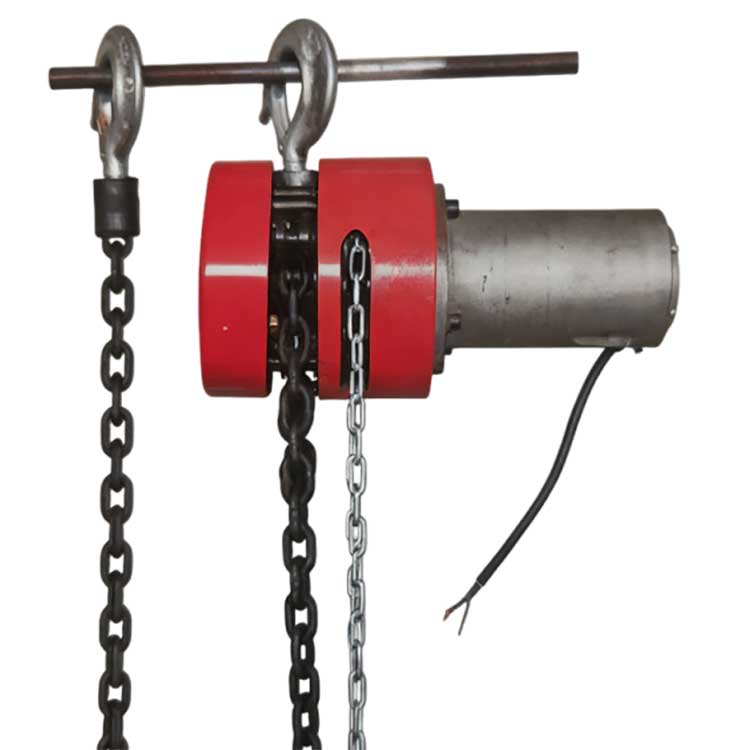

Hand Operated and Eelectric Integrated Hoist
Hand-operated and electric integrated hoist。Dual-function (manual and electric). This chain hoist combines manual chain operation with a motor, offering both manual and electric capabilities. Compact and portable, its rational design saves time and effort, expands the working range, reduces labor intensity, and improves work efficiency.
Send InquiryDetailed Description
1.Product Advantages
The hand-operated and electric dual-purpose chain hoist is a type of small lifting equipment. It consists of a lifting mechanism, a reduction gear mechanism (originally a hand-operated hoist), a braking mechanism, a motor and reduction gear mechanism, and a manual mechanism.1. The hand-operated and electric dual-purpose chain hoist has both a hand chain and a motor, combining manual and electric functions.
2. It is rationally designed, saves time and labor, expands the working range, reduces labor intensity, and improves work efficiency.
3. Manufactured and wholesaled by Hanxiang Factory, the product quality is guaranteed, and all certificates, including factory certificates and quality inspection reports, are complete.
4.The product is packaged in a wooden crate, effectively protecting the contents and reducing damage during logistics and transportation.
2.Specification
|
model |
DH-01 |
DH-02 |
DH-03 |
DH-05 |
|
Lifting Capacity (t) |
1 | 2 | 3 | 5 |
|
Test Load (t) |
1.5 | 2.5 | 3.6 | 6.5 |
|
Applicable Voltage (v) |
380 |
|||
|
Number of Chain Turns |
1 | 2 | 2 | 2 |
|
Chain Diameter (mm) |
6 | 6 | 8 | 10 |
|
Lifting Height (m) |
3/6 |
3/6 |
3/6 |
3/6 |
|
Lifting Speed (m/min) |
2 |
1 |
||
