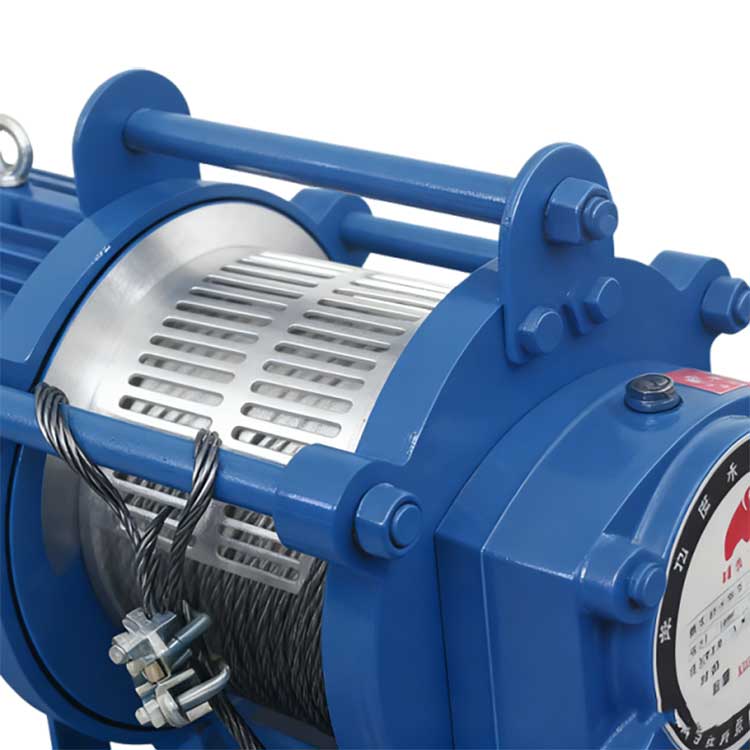

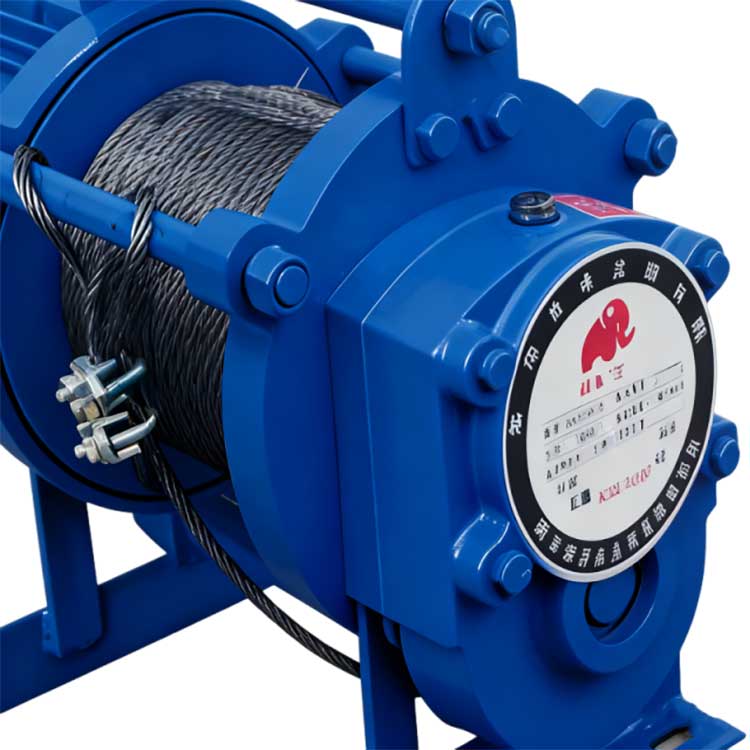

Multifunctional Elevator
This multi-functional hoist features a pure copper core motor for stable performance and excellent heat dissipation, and is equipped with a high-strength, wear-resistant lifting wire rope. A wireless remote control is available for convenient use. It has a wide range of applications, including construction, well digging and soil lifting, warehouses, shopping malls, restaurants, and small factories.
Send InquiryDetailed Description
1.Product Advantages
●Motor: Pure copper core motor with heat dissipation holes, stable performance.●Capacitor interface: High-quality capacitor interface, convenient wiring.
●Oil injection hole: Large hole for oil injection. Before use, it is necessary to inject grease.
●Steel wire rope: Uses lifting steel wire rope, with superior toughness and greater wear resistance.
●Switch: High-quality power switch, can be paired with wireless remote control.
2.Functions and uses
The main application fields include: residential buildings, lifting bricks, digging wells and transporting soil, freight yards and warehouses, shopping malls, restaurants, small workshops, etc.3.Specification
|
Model |
Usage Instructions |
Rated Voltage (v) |
Power (kw) |
Lifting Speed (m/min) |
Lifting Height (m) |
Net Weight (kg) |
|
300-600 |
Single rope |
380 |
0.6 |
16 |
30-60 |
25 |
|
double rope |
8 | |||||
|
400-800 |
Single rope |
220 |
2.2 |
14 |
30-100 |
49 |
|
double rope |
7 | |||||
|
500-1000 |
Single rope |
380 |
1.5 |
20 |
30-100 |
55 |
|
double rope |
10 | |||||
|
750-1500 |
Single rope |
380 |
1.5 |
16 |
30-100 |
65 |
|
double rope |
8 | |||||
|
1000-2000 |
Single rope |
380 |
3 |
16 |
30-100 |
80 |
|
double rope |
8 |
