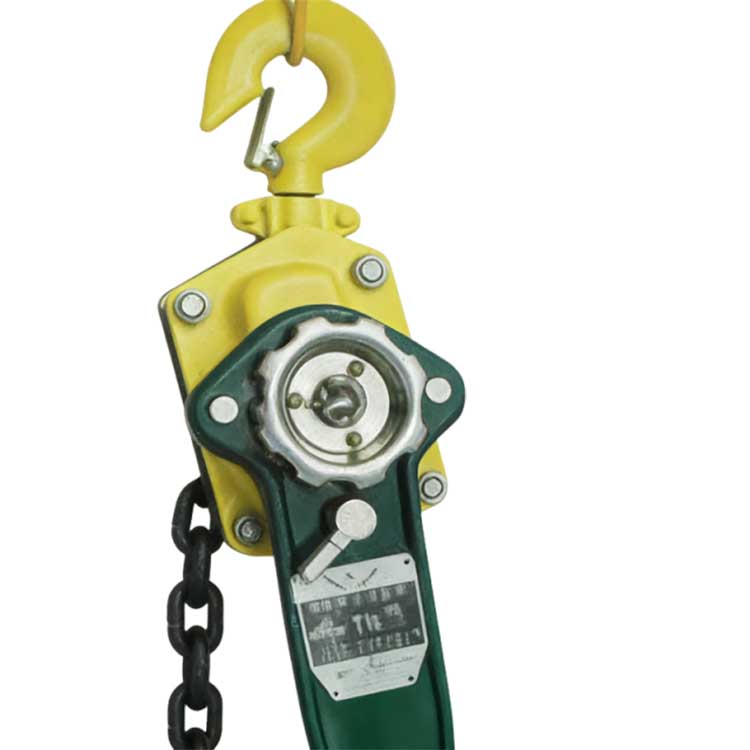

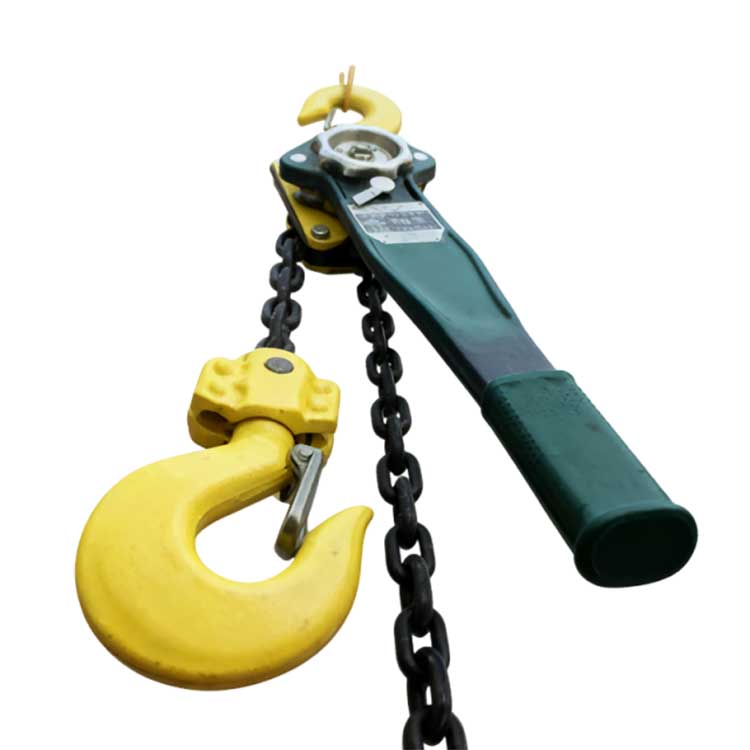

HSH Lever Hoist
HSH lever hoists feature high-strength alloy steel chains and heat-treated hooks, double ratchet brakes and Weston-style automatic brakes. They are lightweight, compact, easy to operate, portable, and safe and reliable. The lifting height can be flexibly configured to meet various working conditions.
Send InquiryDetailed Description
1. Product Advantages
1.Lightweight, small size, and The handle requires little force to operate.
2.Standard configuration: high-strength alloy steel lifting chain.
3. Forged hooks undergoing specialized heat treatment, resulting in high strength and long service life.
4. Different lifting heights can be configured according to requirements.
5. Compact structure, lightweight, and easy to carry.
6. Double pawl brake for safe and reliable braking.
7. Easy and quick adjustment of the unidirectional mechanical chain.
8. Weston-style double-clamp non-adjustable automatic brake.
2.Specification
|
Model |
HSH0.75 |
HSH1.5 |
HSH3 |
HSH6 |
|
Lifting Capacity (t) |
0.75 | 1.5 | 3 | 6 |
|
Standard Lifting Height (m) |
1.5 | 1.5 | 1.5 | 1.5 |
|
Minimum Distance Between Hooks (mm) |
310 | 370 | 485 | 600 |
|
Hand-operated Lever Force at Full Load (N) |
196 | 220 | 325 | 343 |
|
Number of Lifting Chain Rows |
1 | 1 | 1 | 2 |
|
Diameter of Lifting Chain Round Steel |
6.3 | 7.1 | 9 | 9 |
|
Net Weight (kg) |
7 | 11 | 20 | 30 |
|
Packaging Dimensions (cm) |
30*17*32 |
43*18*17 |
50*20*19 |
53*21*21 |
|
Weight Increase per Meter of Lifting Height (kg) |
0.82 | 1.43 | 2.21 | 4.42 |
