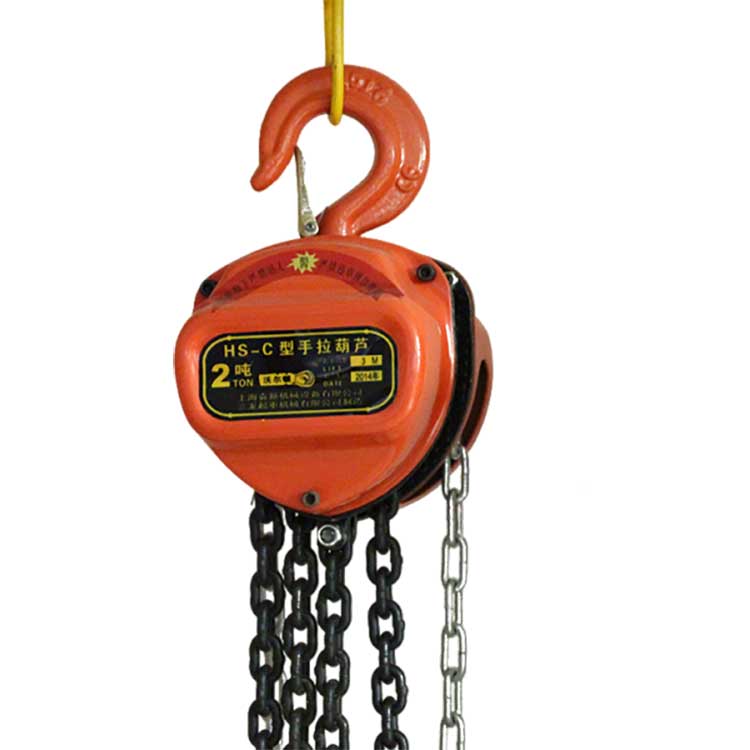

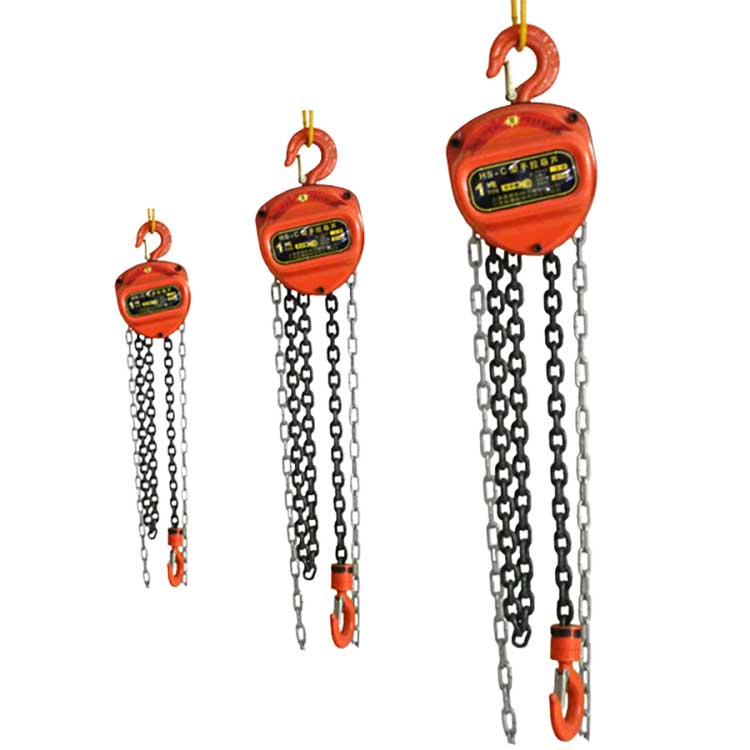

HSC Chain Block
HSC chain blocks are made of alloy steel and equipped with an 80-grade high-strength chain, treated with 20Mn2 medium-frequency quenching for low wear and corrosion resistance. An upgraded version of the HSZ model, it is more labor-saving and safer, meeting European CE safety standards. Suitable for factories, warehouses, docks, mines, construction sites, and other similar applications.
Send InquiryDetailed Description
1. Product Advantages
The HSC type chain blockt's main components are made of alloy steel, and the chain uses grade 80 high-strength chain, typically made of 20Mn2, with medium-frequency quenching treatment, low wear, and corrosion resistance. It is an improved product based on the HSZ type hand chain hoist using advanced Japanese technology, featuring lower pulling force, a higher safety factor, and greater versatility. It meets European CE safety standards.
2.Functions and uses
Suitable for use in factories, mines, construction sites, agricultural production, as well as docks, shipyards, warehouses, etc., for installing machinery, lifting goods, and loading and unloading vehicles.
3.Specification
|
Model |
HS-C1/2 |
HS-C1 |
HS-C2 |
HS-C3 |
HS-C5 |
HS-C10 |
HS-C20 |
|
Lifting capacity（t） |
0.5 |
1 | 2 | 3 | 5 | 10 | 20 |
|
Lifting Height (m) |
2.5 |
2.5 | 2.5 | 3 | 3 | 3 | 3 |
|
Test Load (t) |
0.63 |
0.63 | 2.5 | 4 | 6.3 | 12.5 | 25 |
|
Minimum Distance Between Hooks (mm) |
255 |
306 | 444 | 486 | 616 | 700 | 1000 |
|
Number of Chain Rows |
1 | 1 | 2 | 2 | 2 | 4 | 8 |
|
Chain Diameter (mm) |
6 | 6 | 6 | 8 | 10 | 10 | 10 |
|
Net Weight (k |
8 | 10 | 13.5 | 22 | 35 | 62 | 157 |
|
Gross Weight per Carton (kg) |
8.5 | 12 | 15.5 | 25 | 39 | 69 | 195 |
|
Gross Weight per Carton (kg) |
30×22×18 |
30×22×18 |
30×22×18 |
30×22×20 |
43×30×22 |
60×48×25 |
70×450×75 |
