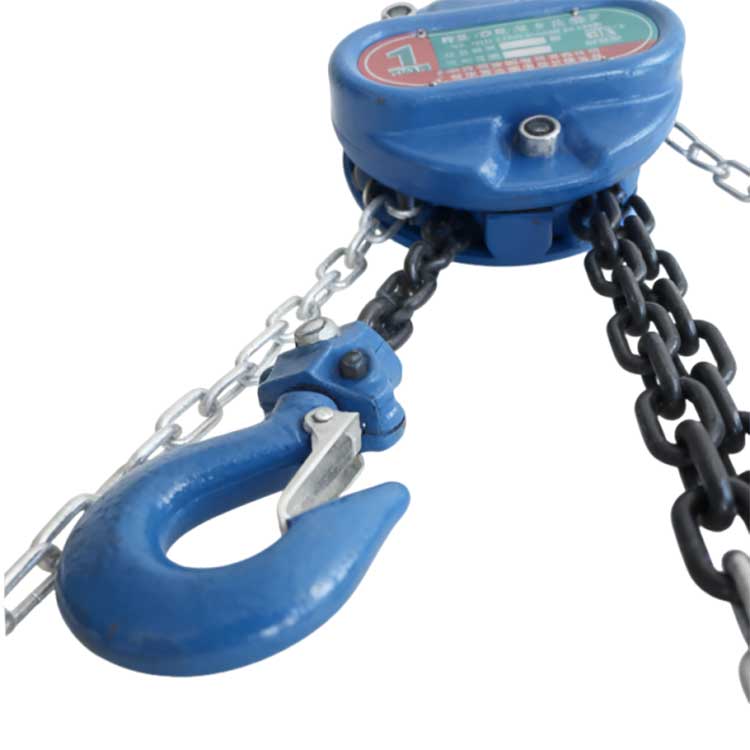

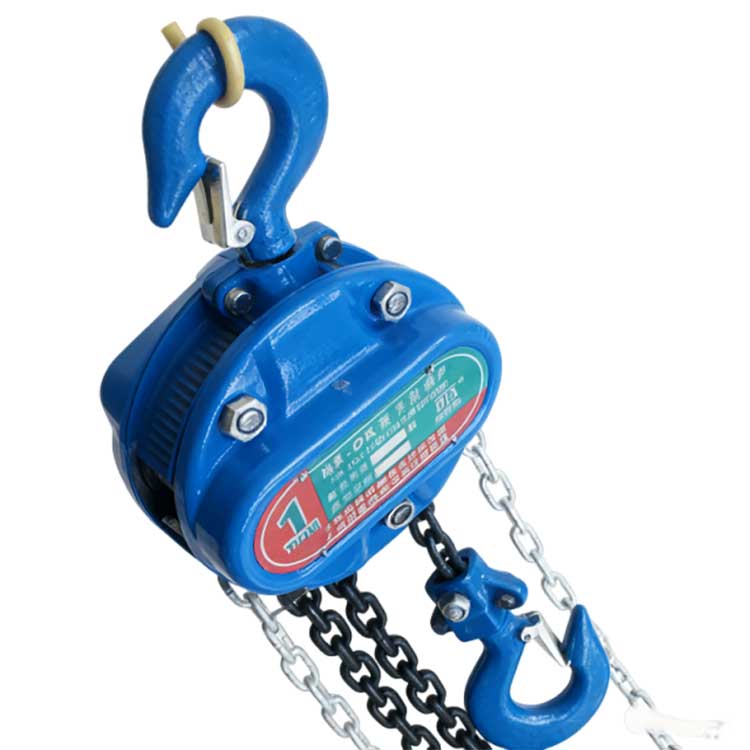

HS-DK Chain Block
The HS-DK chain block features an advanced structure, compact size, and light weight. It employs a double pawl and dual guide wheel design for safety and efficiency. Key components undergo heat treatment for robustness and durability. The lightweight and portable aluminum alloy casing is powder-coated for corrosion and wear resistance, making it suitable for a wide range of applications.
Send InquiryDetailed Description
1.Product Advantages
●The HS-DK type hand chain hoist is a lifting machine with advanced structure, novel design, small size, and light weight.●It adopts a double pawl design, improving its safety and reliability.
●Two-way guide wheels enhance working efficiency and make its performance superior.
●Main components are heat-treated, greatly increasing the product's usage frequency and ensuring durability.
●Powder coating process provides corrosion resistance, colorfastness, and excellent durability.
●The aluminum alloy shell is sturdy, durable, lightweight, and easy to use.
●It occupies little space, has a wide range of applications, is safe and efficient, and can be used with confidence.
●It is widely used in factories, warehouses, docks, ships, mines, construction sites, and many other occasions.
2.Specification
|
Model |
HS-DK |
||||||
|
Lifting Capacity (t) |
0.5 | 1 | 2 | 3 | 5 | 10 | 20 |
|
Lifting Height (m) |
2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
|
Test Load (t) |
0.75 | 1.5 | 3 | 4.5 | 7.5 | 12.5 | 22.5 |
|
Hook Spacing (mm) |
240 | 270 | 444 | 486 | 616 | 700 | 1000 |
|
Number of Chain Rows |
1 | 1 | 1,2 | 2 | 2 | 4 | 8 |
|
Chain Diameter (mm) |
6 | 6 | 6 | 8 | 10 | 10 | 10 |
|
Net Weight (kg) |
9.5 | 10 | 14 | 24 | 36 | 68 | 155 |
|
Gross Weight (kg) |
12 | 13 | 17 | 28 | 45 | 83 | 193 |
|
Carton Dimensions (L*W*H) |
28*21*17 |
30*24*18 |
33*25*19 |
38*30*20 |
45*24*18 |
60*48*25 |
70*45*75 |
