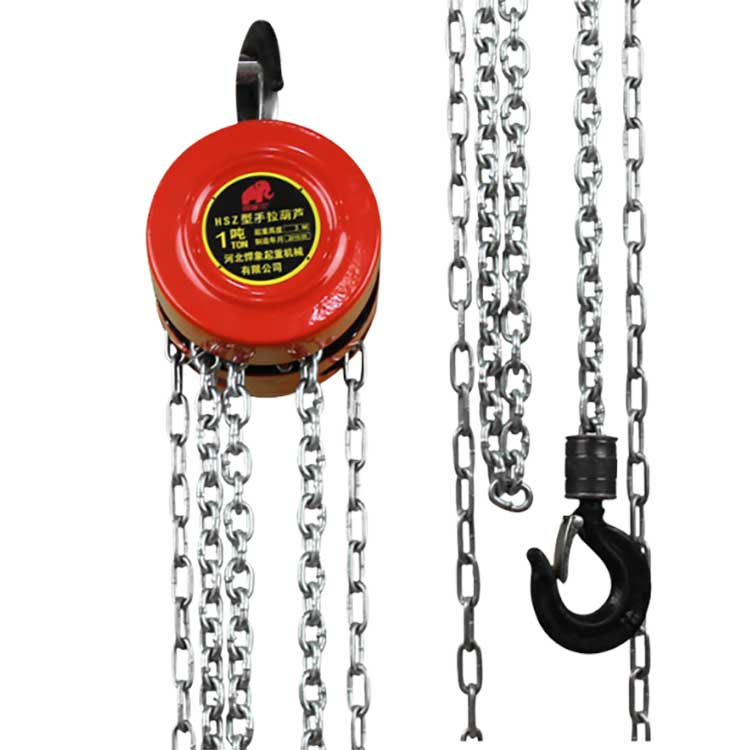

HSZ Type Chain Block
The HSZ type chain blocks are made of alloy steel and equipped with a G80 grade chain, treated with 20M2 medium-frequency quenching, resulting in low wear and corrosion resistance. The forged high-strength alloy steel hook ensures slow lifting to prevent overload. It has a wide range of applications, including factories, warehouses, docks, mines, and construction sites.
Send InquiryDetailed Description
1. Product Advantages
The main components of the chain block are made of alloy steel. The chain is a G80 grade high-strength lifting chain, generally made of 20M2 material, with medium-frequency quenching heat treatment, low wear, and corrosion resistance. The high-strength hook is generally made of alloy steel, and the forged hook design ensures slow lifting to prevent overload.
2.Functions and uses
Suitable for use in factories, mines, construction sites, agricultural production, as well as docks, shipyards, warehouses, etc., for installing machinery, lifting goods, and loading and unloading vehicles.
3.Specification
|
Model |
HSZ-1/2 |
HSZ-1 |
HSZ-3/2 |
HSZ-2 |
HSZ-3 |
HSZ-5 |
HSZ-10 |
HSZ-20 |
HSZ-30 |
HSZ-50 |
|
Lifting Capacity (t) |
0.5 |
1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
|
Standard Lifting Height (m) |
2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 |
|
Test Load (t) |
0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 27.5 | 62.5 |
|
Minimum Distance Between Hooks (mm) |
270 | 270 | 368 | 444 | 486 | 616 | 700 | 890 | 980 | 1300 |
|
Hand Chain Pulling Force at Full Load (N) |
225 | 3.9 | 343 | 314 | 343 | 383 | 392 | 392 |
450*2 |
450*2 |
|
Number of Lifting Chain Rows |
1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 12 | 22 |
|
Lifting Chain Round Steel Diameter (mm) |
6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
10 |
10 |
|
Gross Weight per Box (kg) |
12 | 13 | 20 | 17 | 28 | 45 | 83 | 193 |
|
|
|
Box Dimensions (L*W*H) cm |
28*21*17 |
30*24*18 |
34*29*20 |
33*25*19 |
38*30*20 |
45*35*24 |
62*50*28 |
70*46*75 |
|
|
|
eight Increase per Meter of Lifting Height (kg) |
1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | 28.3 | 50 |
