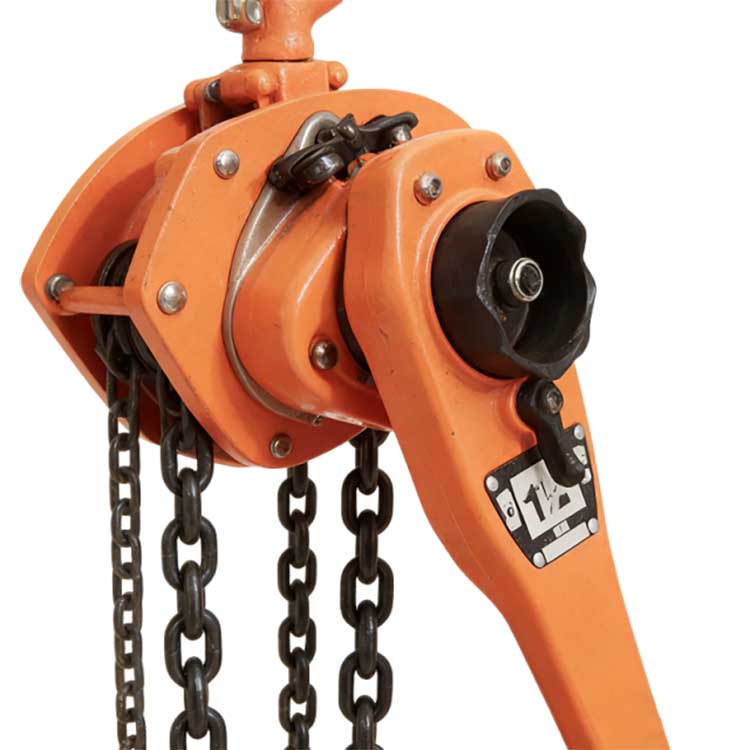

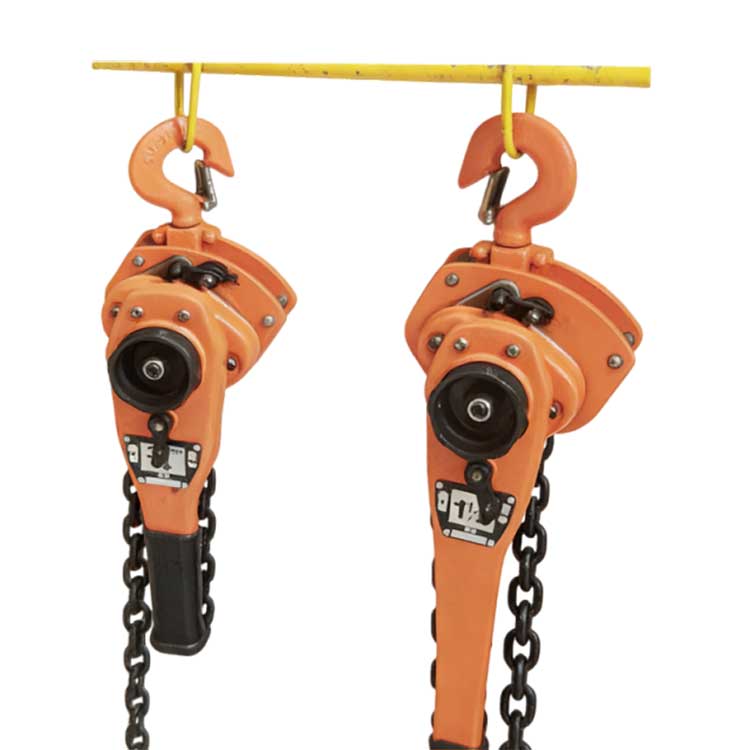

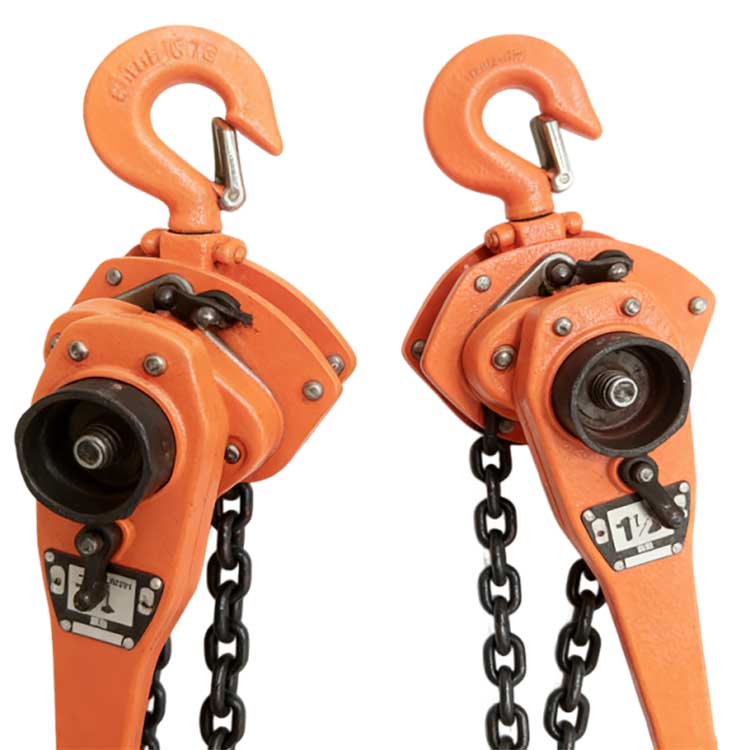

VL Hand Chain Hoist
The VL lever hoist's lifting chain is made of high-strength alloy steel. The hook is heat-treated for high strength, and features double pawl brakes and an automatic brake for safety and reliability. 360-degree rotation facilitates operation in confined spaces with minimal operating force. It is lightweight, compact, and easy to carry.
Send InquiryDetailed Description
1. Product Advantages
1. Adopting advanced Japanese technology.
2. Lightweight, small in size, with low handle operating force.
3. Standard configuration of high-strength alloy steel lifting chains.
4. Forged hooks that have undergone specialized heat treatment, with high strength and long service life.
2.Functions and uses
1. The structure of the machine is compact, lightweight, and easy to carry.
2. The double pawl brake is safe and reliable.
3. The one-way mechanical rotating chain is easy and quick to adjust.
4. The Weston-style double card automatic brake does not require adjustment.
5. The 360-degree rotating handle is easy to use in narrow spaces.
3.Specification
|
Model |
VL0.75 |
VL1.5 |
VL3 |
VL6 |
|
Lifting Capacity (t) |
0.75 | 1.5 | 3 | 6 |
|
Standard Lifting Height (m) |
1.5 | 1.5 | 1.5 | 1.5 |
|
Minimum Distance Between Hooks (mm) |
310 | 370 | 485 | 600 |
|
Hand-operated Lever Force at Full Load (N) |
196 | 220 | 325 | 343 |
|
Number of Lifting Chain Rows |
1 | 1 | 1 | 2 |
|
Diameter of Lifting Chain Round Steel（mm） |
6 | 8 | 10 | 10 |
|
Net Weight (kg) |
7 | 11 | 20 | 30 |
|
Packaging Dimensions (cm) |
30*16*13 |
43*18*17 |
50*20*19 |
53*21*21 |
|
Weight Increase per Meter of Lifting Height (kg) |
0.82 | 1.43 | 2.21 | 4.42 |
