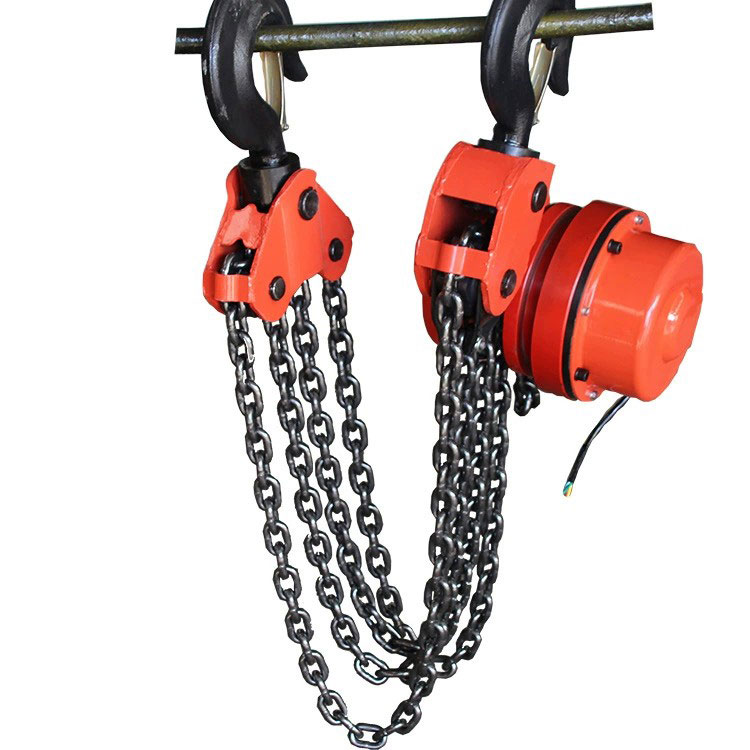

DHP Electric Chain Hoist
DHP electric chain hoists，Group of electric hoists are small and lightweight lifting machines. They operate at slow speeds with stable performance, are lightweight yet durable, and experience minimal wear. They are suitable for low-speed, short-stroke material loading and unloading, and equipment installation, such as in construction projects and the lifting of large oil tank groups. They are inexpensive, high-quality, safe, and reliable.
Send InquiryDetailed Description
1.Product Advantages
Group-lifting electric hoists are ultra-low-speed chain electric hoists, a type of lightweight lifting machinery characterized by slow lifting speed, smooth operation, light weight, high component hardness, and low wear. They are suitable for lifting climbing scaffolds and formwork in construction engineering, as well as for group lifting of large oil tanks, hence the name "group-lifting electric hoist."The DHP series electric hoists are suitable for low-speed, short-stroke applications in material loading and unloading, equipment installation, mining, and construction engineering. They are inexpensive, reliable, and safe, bringing convenience to your work.
2.Functions and uses
The DHP type electric chain hoist consists of three parts: an HSZ type manual hoist (without the hand chain wheel, hand chain, hand chain wheel cover, etc.), a disc brake motor, and a planetary reducer. Its working principle is that the rotation of the electric motor, through the reduction speed of the planetary reducer, outputs speed and power, driving the hoist's chain wheel to rotate, thus making the hoist work. When the power is cut off, the braking action of the brake motor stops the hoist, and the load stops in the corresponding position.
3.Specification
|

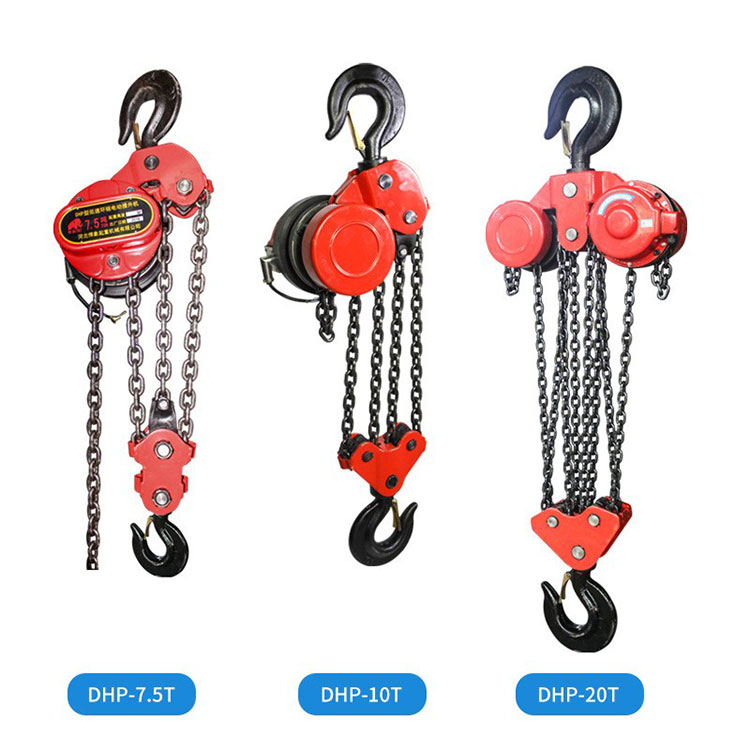

16Model |
DHP5T |
DHP7.5T |
DHP10T |
DHP20T |
DHP30T |
|
|
Rated Load (ton) |
5 | 7.5 | 10 | 20 | 30 | |
|
Test Load (Gn) |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
|
|
Motor Power (Kw) |
0.5 |
0.5 |
0.5 |
0.5 |
0.75 |
|
|
Power Supply Voltage |
380v/50hz |
|||||
|
Lifting Speed (m/min) |
0.09 |
0.18 |
0.12 |
0.09 |
0.09 |
0.06 |
|
Minimum Distance Between Hooks (mm) |
200 |
500 |
500 |
500 |
500 |
500 |
|
Number of Lifting Chain Rows |
2 | 3 | 4 | 8 | 12 | |
|
Standard Lifting Height (m) |
|
|||||
|
Diameter of Lifting Chain Round Steel (mm) |
10 |
10 |
10 |
10 |
10 |
|
|
Net Weight (kg) |
58 |
70 | 95 | 195 | 285 | |
|
Gross Weight per Box (kg) |
69 |
80 | 108 | 225 | 325 | |
|
Box Dimensions (Length * Width * Height) cm |
50*40*40 |
50*42*39 |
61*48*48 |
70*60*44 |
95*81*53 |
|
|
Weight Increase per Meter of Lifting Height (kg) |
4.4 |
6.6 |
8.8 |
17.6 |
25.2 |
|
