EA round lifting slings
This spring balancer features a larger outer diameter, increasing leverage and reducing pulling force by 50% compared to the HW type (2-3kg). It offers a 2-meter stroke for a wider working range, increased spring fatigue resistance, and a 50% longer service life. It also includes a remote locking function for convenient and safe operation.
Send InquiryDetailed Description

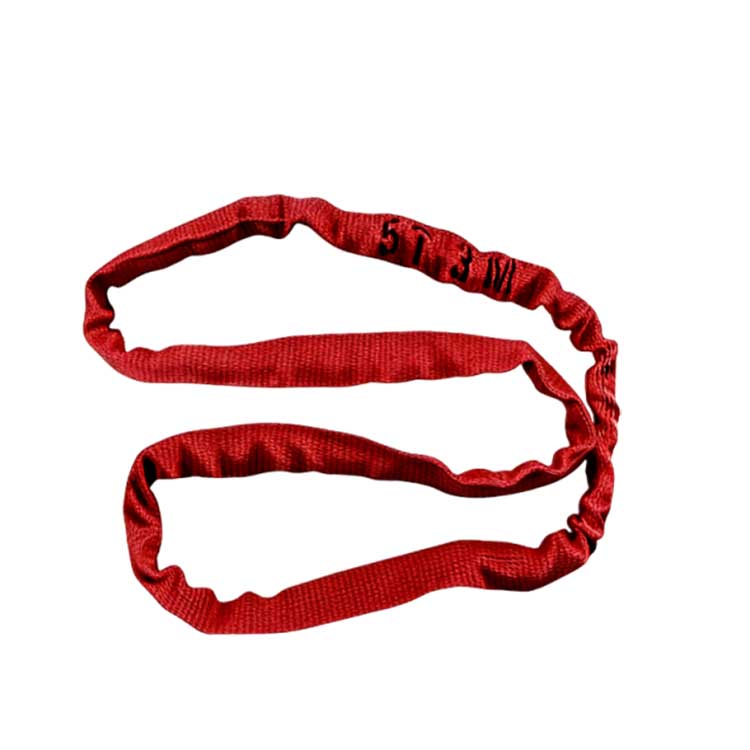

Circular lifting slings have a maximum load capacity of 3000 tons and an effective length of up to 100 meters. The safety factor is generally 7:1 or 6:1.Circular lifting slings are made of high-strength polyester industrial filament (100% PES). The internal load-bearing core uses a non-polar environment to form a loop, and the external 100% PES woven unstressed sleeve protects the load-bearing core.
|
Lift strap model |
color |
Approximate width(mm) |
Minimum length (m) |
Maximum length (m) |
|
EA-01 |
Purple |
45 | 1 |
100 |
|
EA-02 |
green |
55 | 1 |
100 |
|
EA-03 |
yellow |
65 | 1 |
100 |
|
EA-04 |
gray |
70 | 1 |
100 |
|
EA-05 |
red |
75 | 1 |
100 |
|
EA-06 |
brown |
80 | 1 |
100 |
|
EA-08 |
blue |
90 | 1 |
100 |
|
EA-010 |
orange |
100 | 1 |
100 |
|
EA-012 |
orange |
110 | 1 |
100 |
|
EA-015 |
blue |
150 | 1 |
100 |
